README.md

任务模块

top

  1. “装货 / qrcode”
  2. 曲线赛道
  3. 上下坡
    • 存在两种可能性
  4. 石板道
  5. 栅栏 / 栏杆

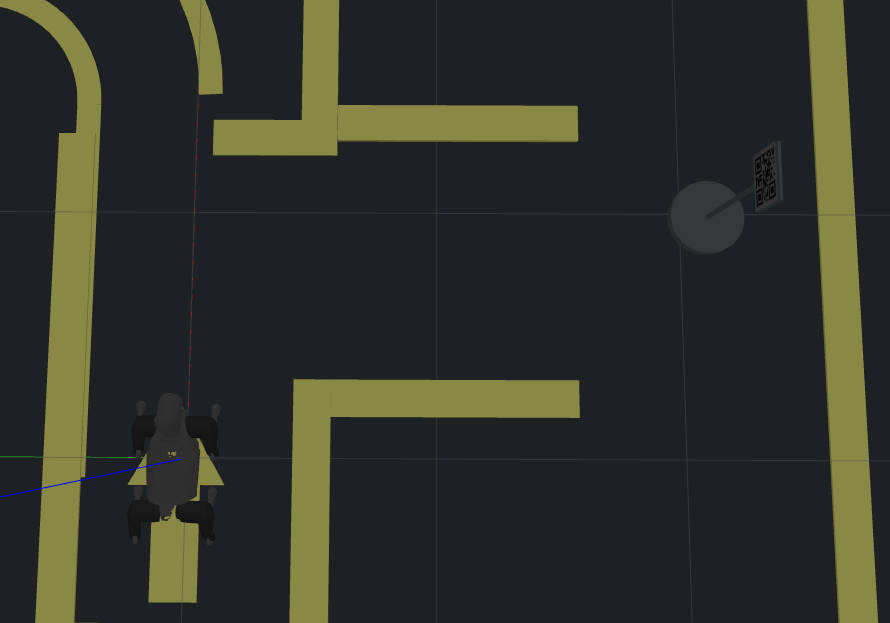

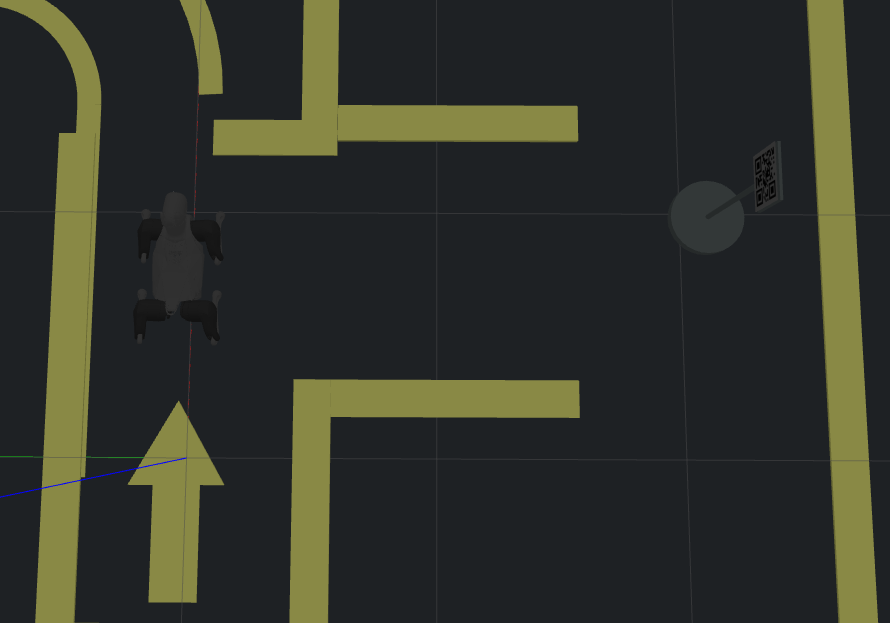

Task-1：出生点 - 取货

alt text

从二维码取货完，然后走到弯道入口。

alt text

校准前方横线 & 距离距离

RGB 摄像机所在位置的确定： 主要是需要确定其高度。

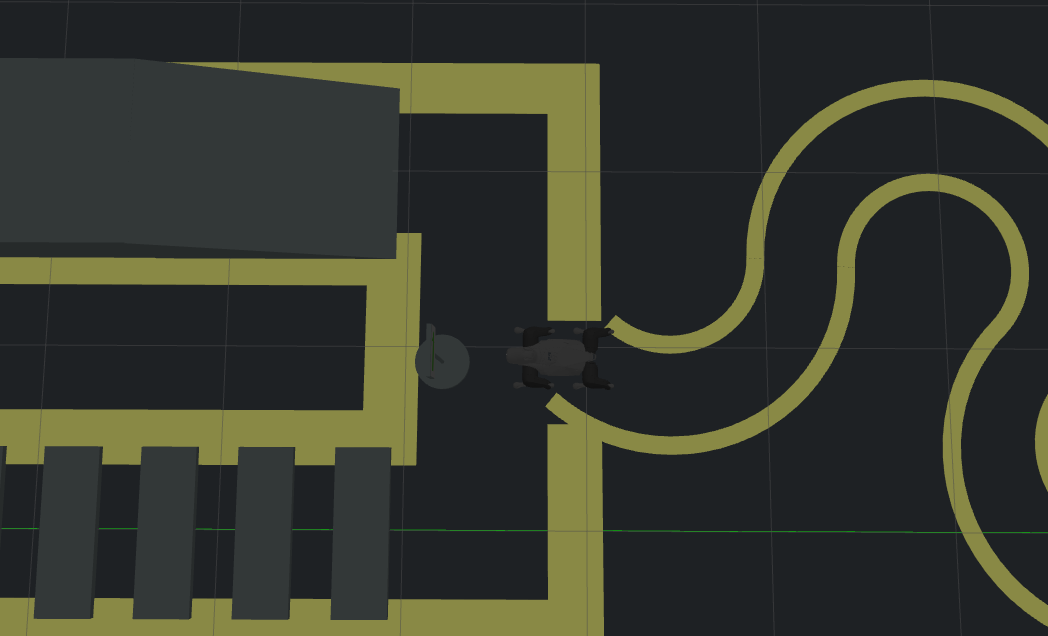

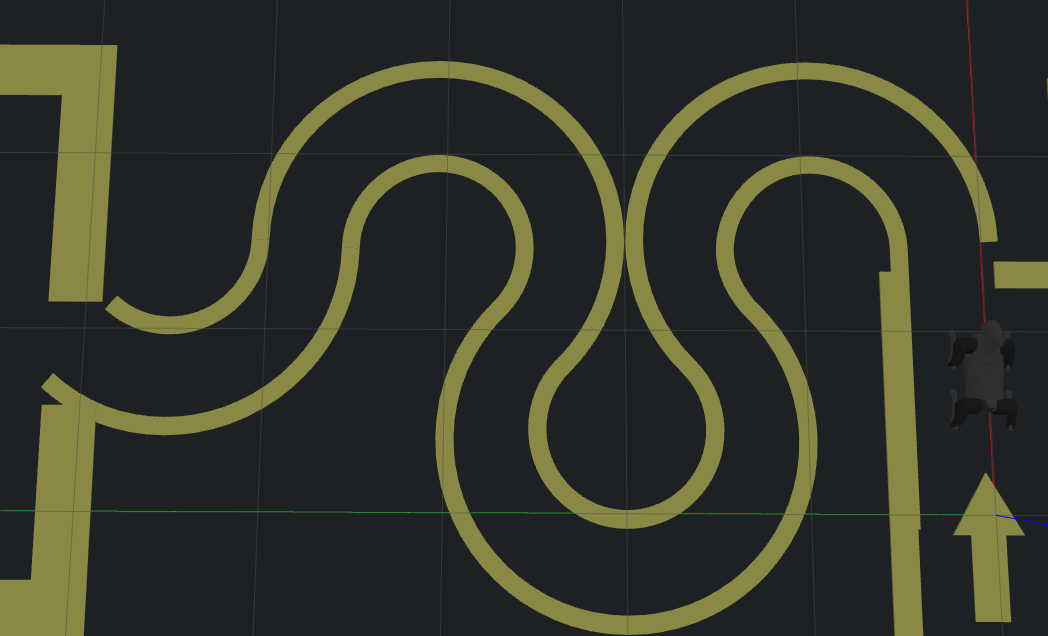

Task-2：弯道任务

过去，以及回来。两个方向都需要。

alt text alt text

Task-2.5：识别

根据箭头决定方向。

这里采取传统cv的基于凸包计算的算法。

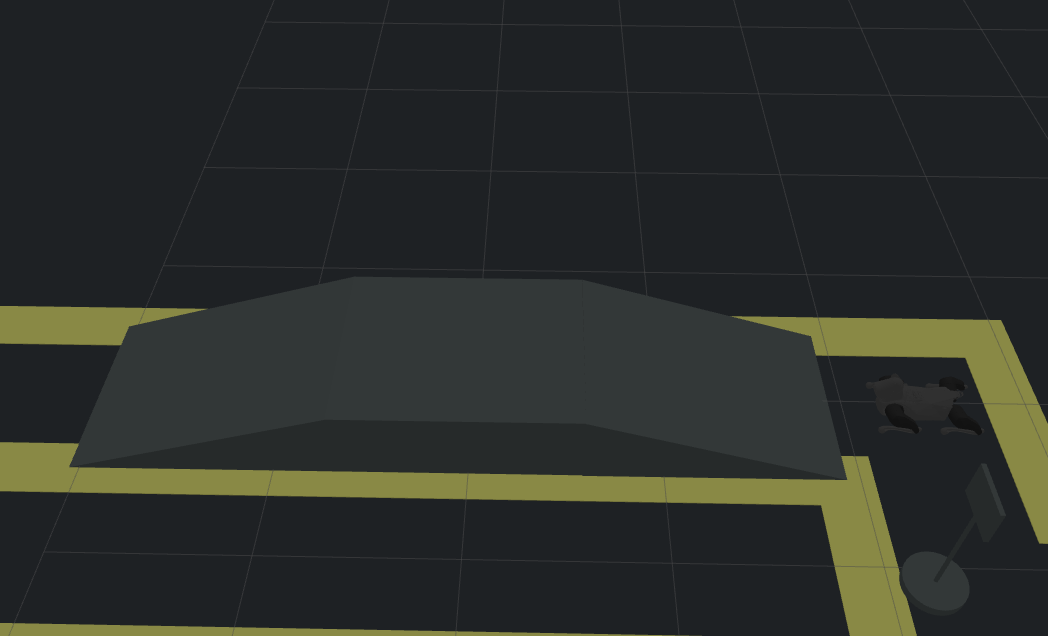

Task-3：上下坡

同样需要考虑两个方向。（正式计时各有一半的概率）

感觉两个坡度稍微有一点点区别。

alt text alt text

以及反方向。

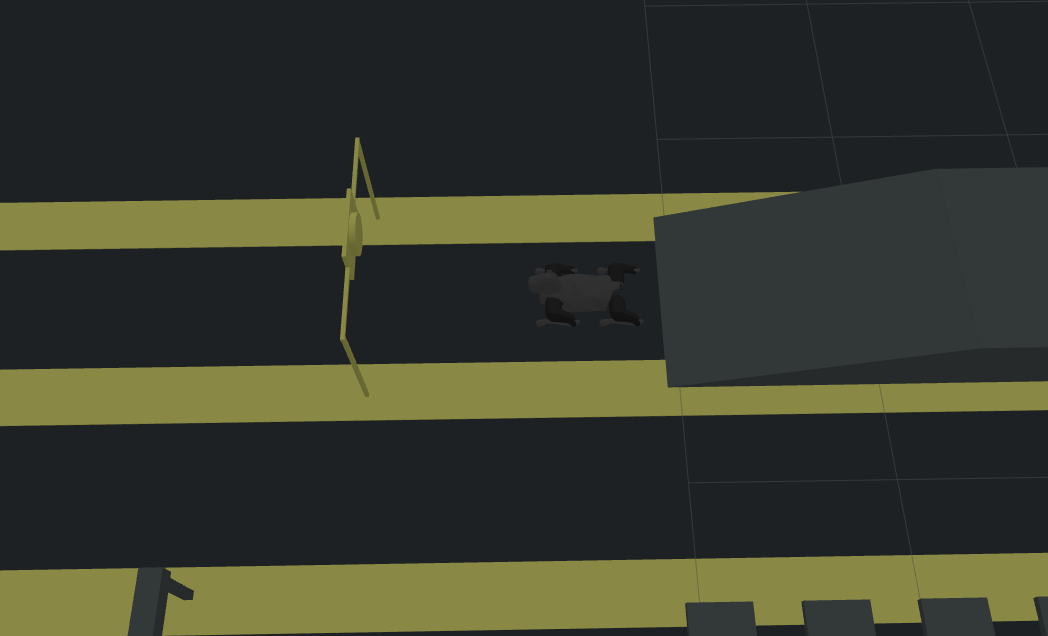

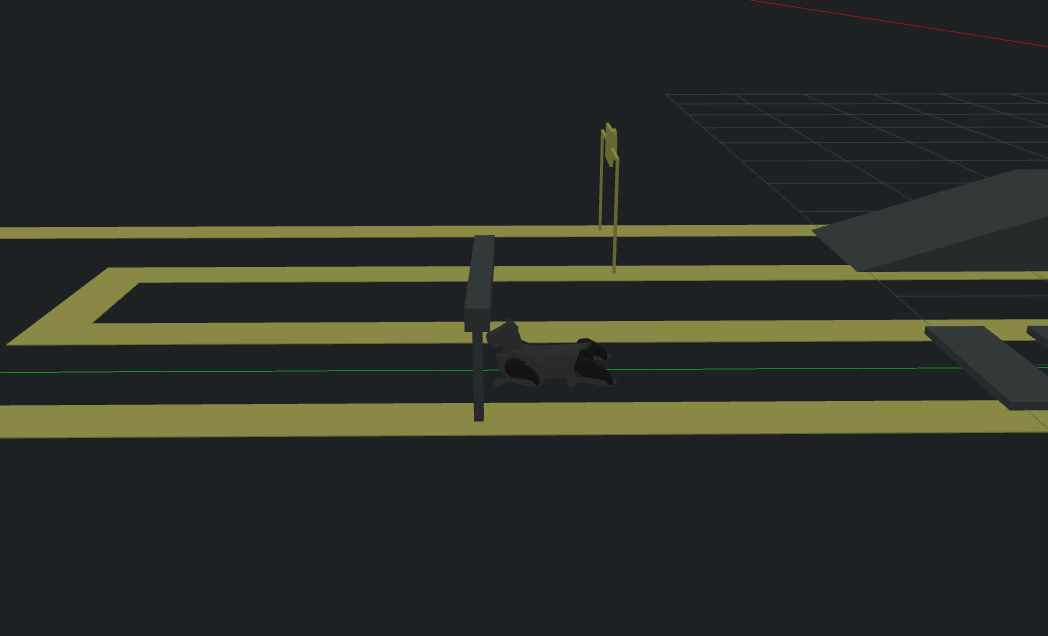

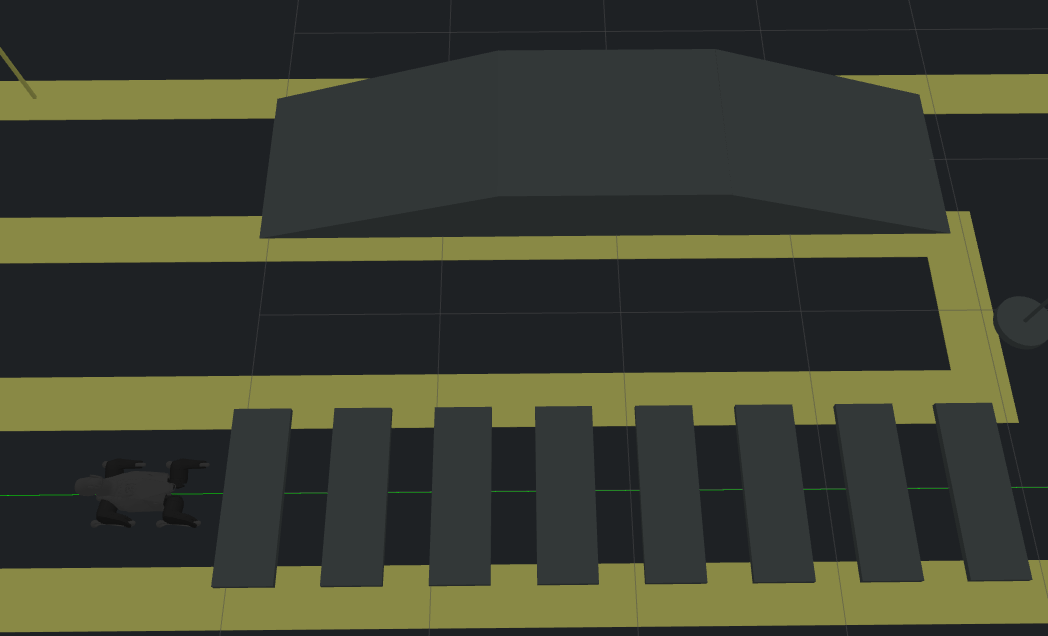

Task-4：石板路 & 过栅栏

![alt text](./res/re adme/image-6.png) alt text

alt text

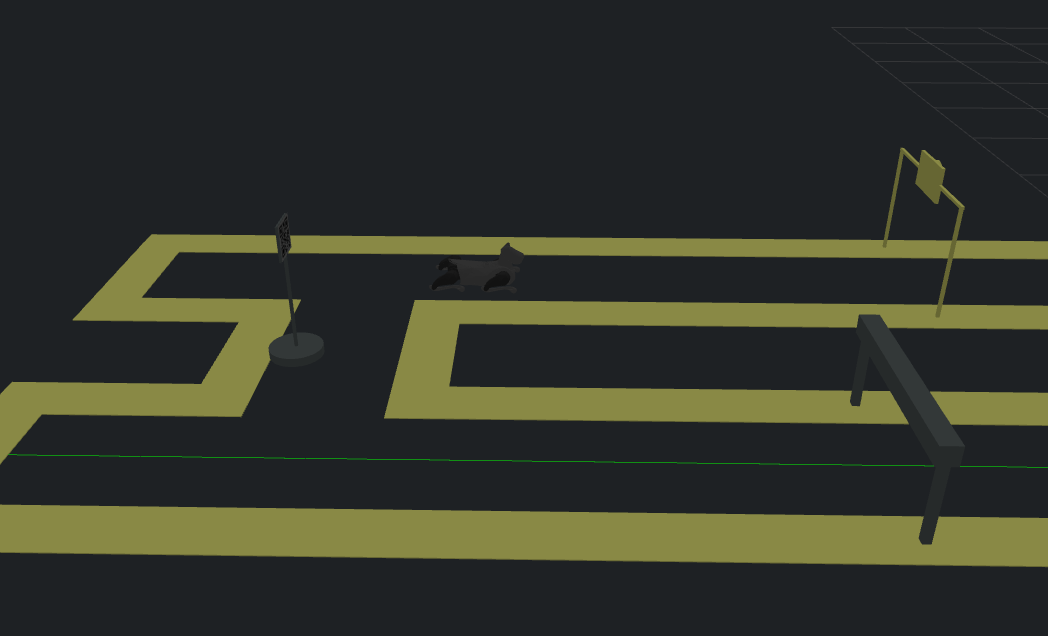

Task-5：走向卸货 & 卸货

从上一个赛道结束到 B 二维码。

也可能在另一边。 这里是感觉在走过去的过程中就能判断二维码。

alt text alt text
